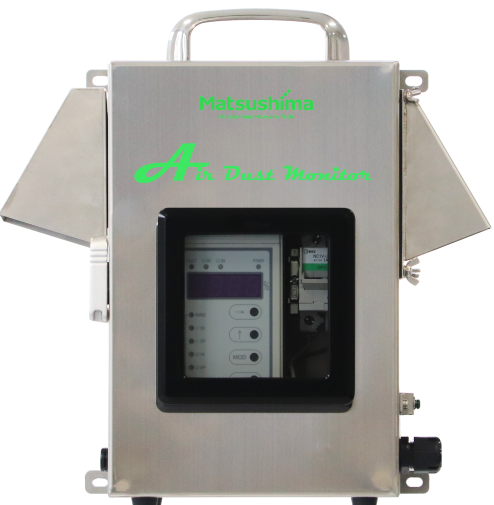

Dust sensor AIR DUST MONITOR


Monitoring dust emitted from facilities to improve work environment

For example, the dust in processing plants influences the health of workers.
(Treatment to prevent health problems based on Industrial Safety and health Act.)
Also, the dust emitted from outdoor facilities like yards is directly released to the atmosphere,
which threaten the life environment in the neighborhood. (Air Pollution Control Law)



Benefit to install AIR DUST MONITOR

  • Prevent dust emission to the neighborhood by applying outside
  • Improve indoor work environment
  • Energy saving effect by controlling dust collectors

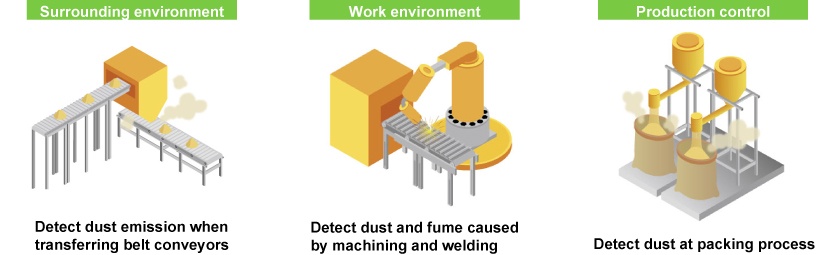

Applications




Specifications



Model PFM-AD12
Principle Triboelectric function
Condition Particle size: ≧0.3μm, humidity: ≦40vol%
Power supply AC110V/220V -15%/+10% 50/60Hz
Output signal DC4 - 20mA x 1 (Max.23.3mA)
Fault alarm 1C x 1 (AC250, 2A / DC30V, 2A)
Upper limit 1C x 2 (AC250, 2A / DC30V, 2A)
Display Concentration: digital 4 digit display (0.0 - 118.5%)
Measuring range

0.1 - 1000mg/m3, 9 range adjustment
Range 1 (lower sensitivity) - Range 9 (higher sensitivity)

Integration time 0 - 30s
Protection IP54
(under the condition the cover and lead outlet are tightened)
Mass Approx. 6.6kg
